Mini Ripper

€699,00
Description

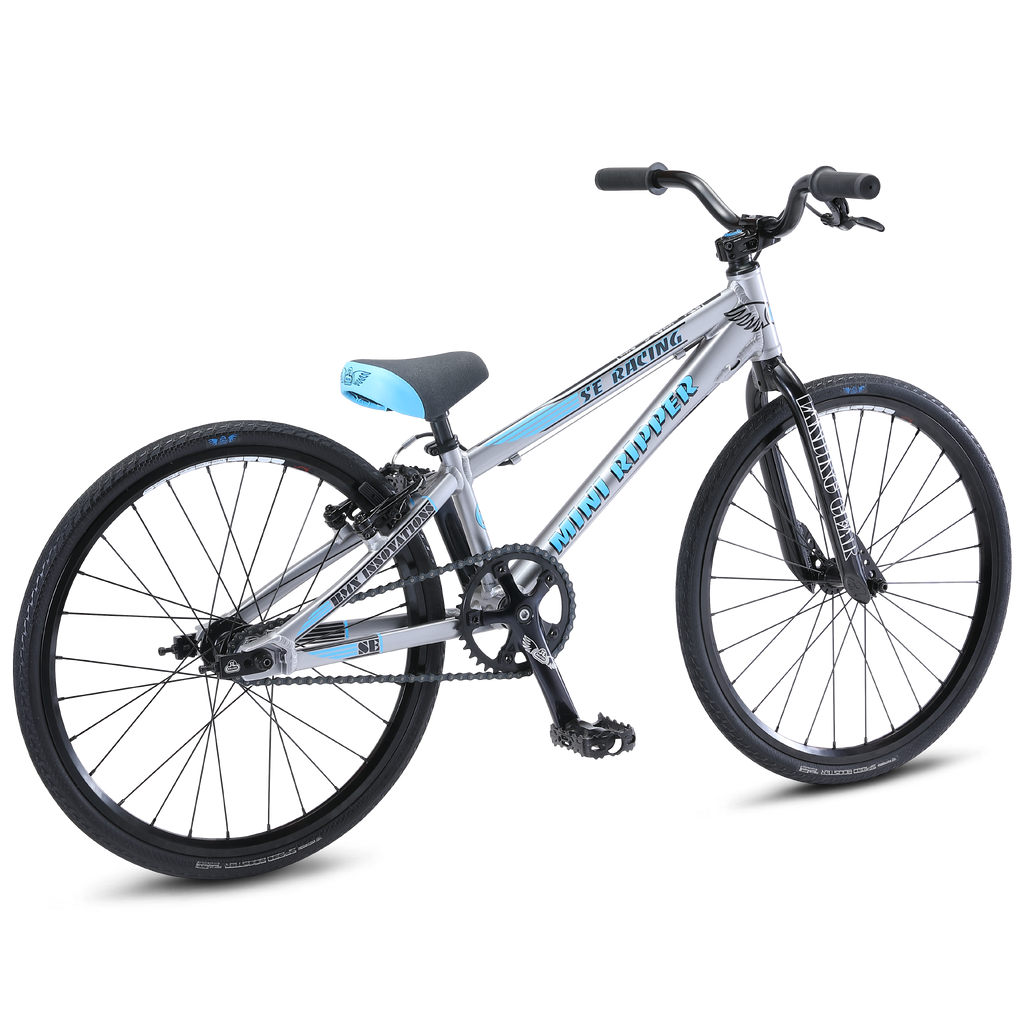

The Mini Ripper's aluminum frame features an ultra-stiff bi-oval downtube, rectangular rear stays and 3D-forged dropouts. Add in the lightweight 6066 aluminum Landing Gear forks, Promax Impact Mini stem, Alienation Ankle Biter rims and new Vee Tire Co Speed Booster tires, and you have one of the lightest and fastest mini race bikes on the track at only 15.8 pounds!

Color
KEY FEATURES
  • Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube and rectangular rear stays for maximum stiffness
  • Lightweight 6066 aluminum Landing Gear forks with 6061 aluminum steerer tube
  • Alloy SE Mini Wing bars
  • Promax Impact Mini 6061-T6 aluminum CNC stem with hidden top cap for a clean look
  • Stiff and lightweight 3-pc 145mm alloy cranks
  • Vee Tire Co Speed Booster 1-1/8" tires provide ultra-quick cornering and low rolling resistance
  • Alienation Ankle Biter rims built with sealed cassette hubs with lightweight hollow axles with race skewer and radial laced spokes on the front
  • 15.8 pounds
SPECIFICATIONS
Suggested Rider Size3'6"- 4'4" (107cm-132cm)
Color(s)Platinum Silver
FrameLightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Bi-Oval Down Tube, 68mm Wide BB, Rectangular Seat & Chainstays, 3D-Forged Dropouts
Fork6066 Alloy Landing Gear, Alloy Steerer Tube
CranksetSE Racing 3-pc Alloy, 145mm, Euro-Sealed Bearing Bottom Bracket, 103mm Spindle Length, 37T Alloy Chainring
PedalsWellgo Alloy Caged, Cr-Mo Axle
ChainKMC Z1
WheelsetSealed Bearing Hollow Axle Alloy Hubs w/ Alienation Ankle Biter Double-Wall, 28H Rims, 14T Cassette, Stainless Spokes
TiresVee Tire Co Speed Booster 20" x 1-1/8" Front & Rear
BrakesetPromax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable
Brake LeversPromax SE-341, 2-Finger Alloy
HeadsetNeco Sealed 1" Integrated Headset
HandlebarAlloy SE Mini Wing Bar, 20.5" x 2.5", 8° Backsweep, 1° Upsweep
StemPromax Impact Mini 1", 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 40mm Reach
GripsMini Grips
SeatSE Racing Mini w/ Integrated Alloy Post
SeatpostIntegrated Alloy, 22.2mm
Seat ClampAlloy, 25.4mm Inner Diameter
AccessoriesSE Chain Tensioners
Weight15.8 lbs / 7.17 kgs
GEOMETRY
ATop Tube, Actual 17.4"
BSeat Tube, Center To Top8.3"
CSeat Tube Angle 71°
DHead Tube Angle 73°
EChainstay Length13.1"
FWheelbase32.1"
GBottom Bracket Height 10.7"
HStandover21.5"
Stem40mm
Handlebar Width20.5"
Crank145mm
Wheel Size20"
Seat Post Diameter22.2mm

ELITE RACE SERIES
